Automated Assembly Carts with Integrated Scissor Lifts for Recreational Vehicle Production
Introduction
40 Autoquip Tork scissor lift tables integrated into automated assembly carts.
Project Challenge
A recreational vehicle manufacturer required a more efficient and ergonomic method to assemble frames on their automated production line. Workers needed to access different areas of the vehicle during assembly, which meant frequent height adjustments to position the work at the correct level. The customer also needed the system to integrate seamlessly with their automated guided cart system that moved frames along the assembly track.
Our Solution

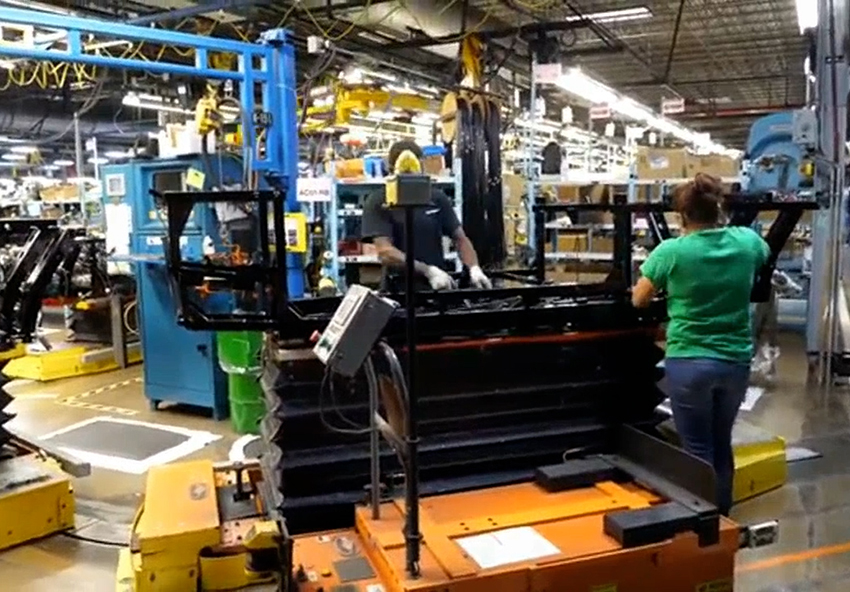

Autoquip provided 40 customized Tork 1 scissor lift tables, each mounted onto an automated cart base that travels along a fixed track to multiple workstations. The vehicle frame is secured on an aluminum base, which sits on top of the lift table for stability during the assembly process.
The lift tables are designed to raise and lower smoothly, allowing workers to adjust the vehicle to their preferred ergonomic height for each step in the build process. This reduces strain, improves productivity, and ensures quality throughout the assembly line.

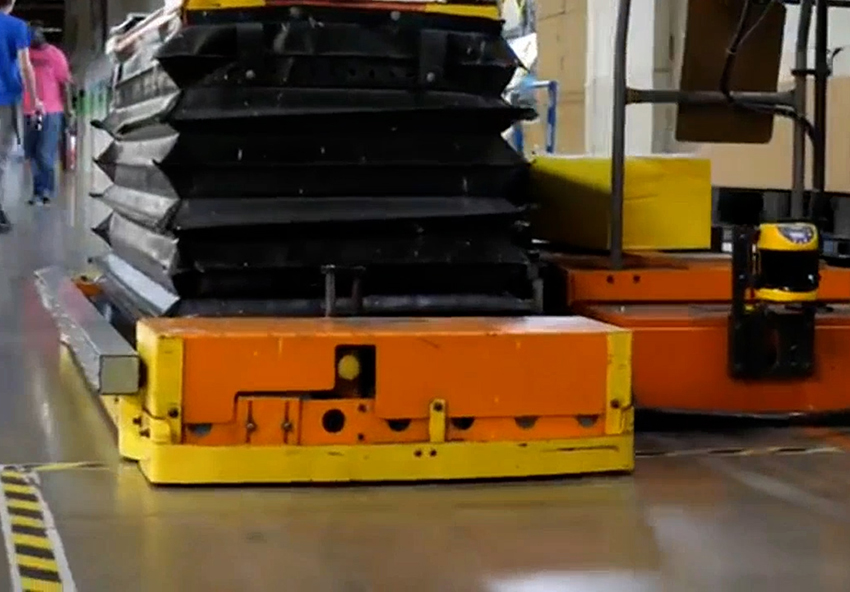

Each lift is equipped with a 4-sided accordion safety skirting to protect the scissor mechanism. The skirts also feature venting to allow heat escape, ensuring safe and efficient operation in continuous use.
AQ Project#
162012
The Results
Increased Ergonomics: Workers can adjust the frame height for comfort and accessibility at every stage of assembly.
Process Efficiency: Automated carts move seamlessly along the track, positioning each unit exactly where it’s needed.
Safety & Reliability: Accordion skirting shields the lift mechanisms while vents manage heat dissipation.
Scalable Production: With 40 lift tables integrated into the system, the customer can support large-scale, high-volume production.
A recent YouTube video from an industry influencer showcases the manufacturer’s factory assembly process, where Autoquip lifts can be seen integrated into the automated cart system.
