Showroom Vehicle Lift – 4-Post Mechanical VRC

A VRC system optimize dealership operations and vehicle flow –Mechanical 4 Post.

As part of a new state-of-the-art dealership in Millcreek UT, Porsche Salt Lake City set out to create a facility that maximized space, efficiency, and customer experience.

This project was brought to Autoquip through our trusted dealer partner, American Custom Lifts, who worked closely with the dealership to identify and implement the right vertical lifting solutions.

To support front-of-house presentation, the dealership required the distinct vertical lifting solution:

• A high-capacity lift for vehicle transport to an elevated showroom

Autoquip delivered a coordinated solution using a tailored Vertical Reciprocating Conveyor (VRC) system—designed to meet the unique demands of its environment.

Designing a multi-level dealership introduced several key challenges:

• Transporting vehicles safely and seamlessly into a second-level showroom
• Maintaining clean, accessible loading conditions for both staff and vehicles
• Ensuring high safety standards
• Integrating this system into a new construction footprint with space constraints

Showroom Vehicle Lift – 4-Post Mechanical VRC (FM4-168-0080)

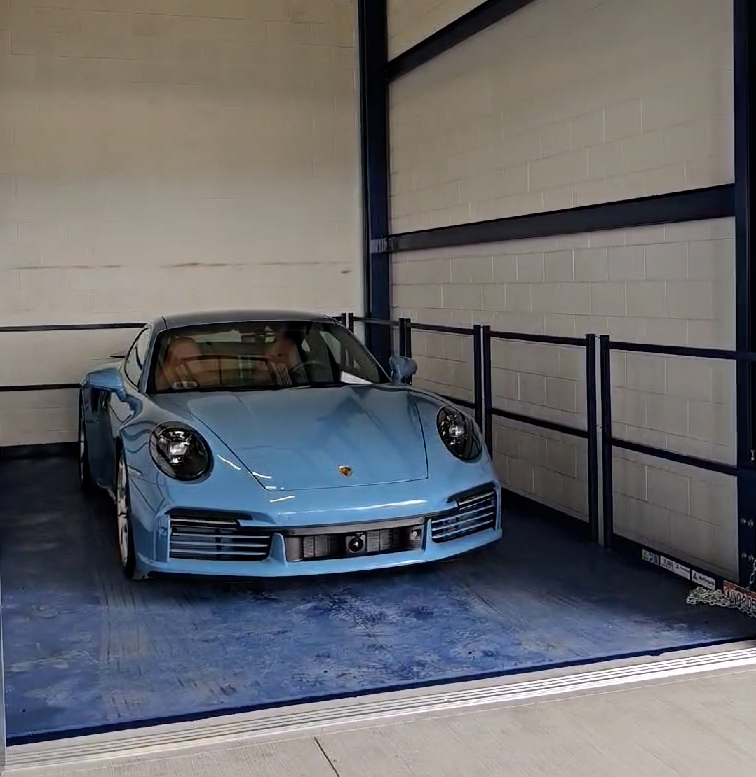

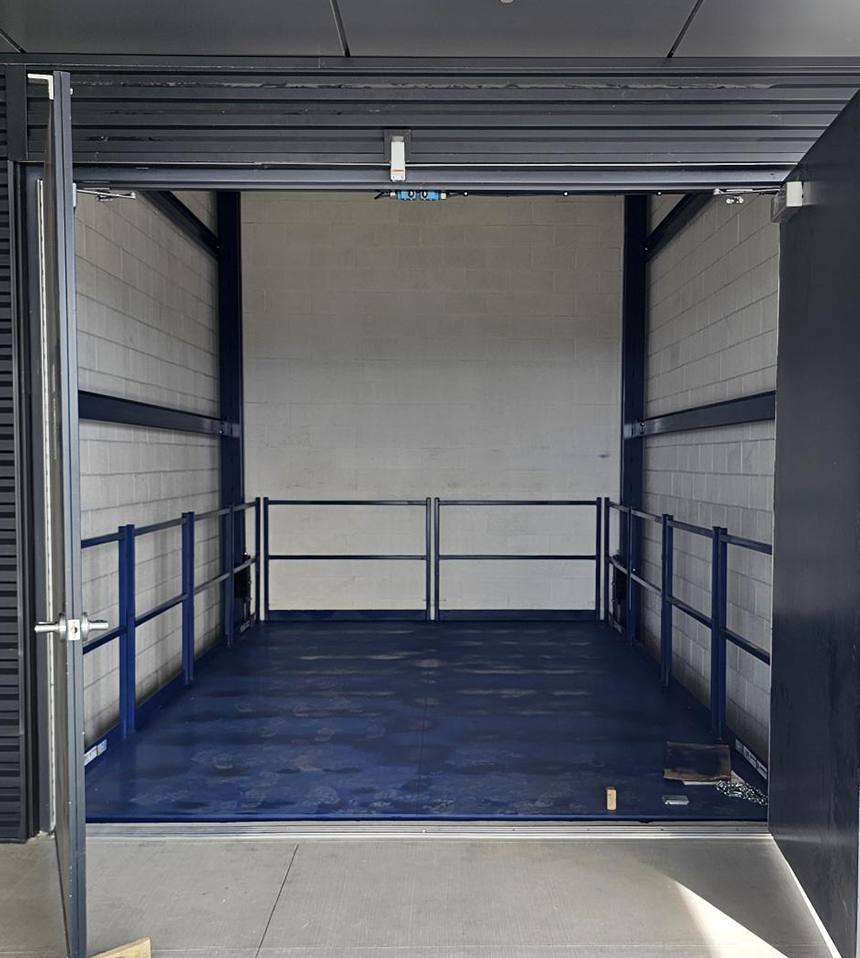

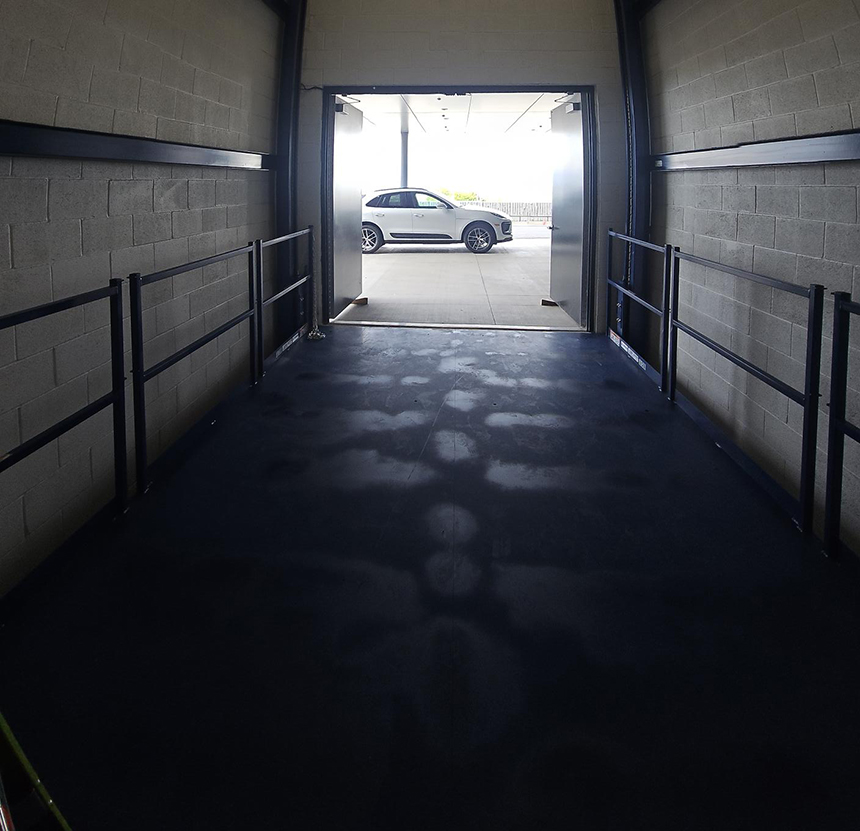

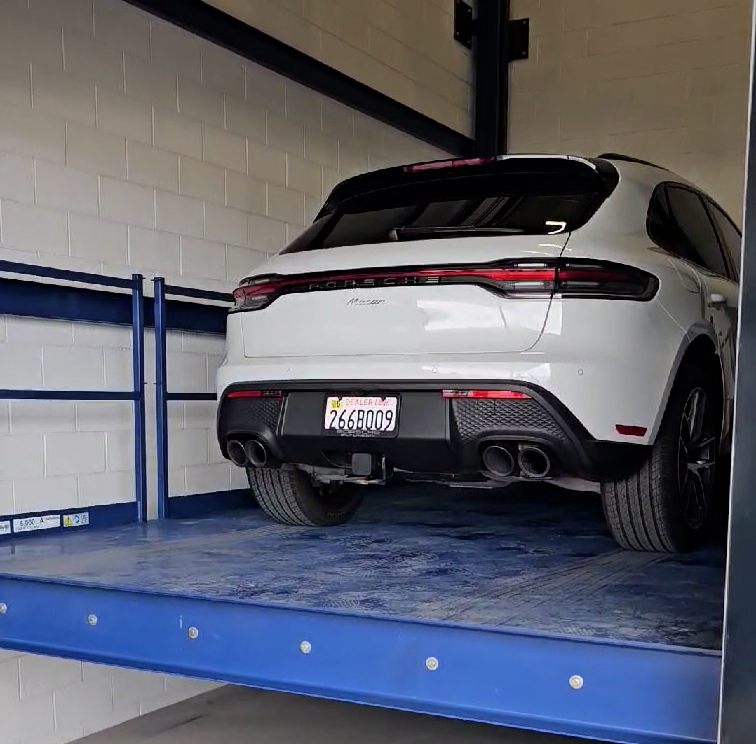

To support the elevated showroom experience, Autoquip installed a 4-post mechanical VRC engineered for vehicle transport and display change out.

Higher travel with increased capacity and platform size to accommodate the newer models and electric SUV’s.

Key Features:

• Capacity: 8,000 lbs
• Platform Size: 127” x 246” (drive-on capable)
• Travel: 2-level system
• Pit-mounted configuration for seamless vehicle access
• Located just outside back of the service area
• Wall mounted lift control station
• Lift-present indicators
• Overhead electro-mechanical gear drive with brake motor for synchronized lifting

Application Impact:
Positioned directly off the service driveway, this lift enables effortless vehicle transport to the upper showroom—supporting dynamic vehicle displays and efficient model change-outs.

AQ Project#

171393

Through collaboration between Porsche Salt Lake City, American Custom Lifts, and Autoquip, the dealership now benefits from a fully integrated vertical transport solution that supports both operations and customer experience.

• Enhanced Customer Experience: Elevated showroom with flexible vehicle display capabilities
• Space Optimization: Maximized use of vertical real estate in a high-value footprint
• Safety & Reliability: Advanced safety features tailored to the specific use
• Future-Ready Design: Increased capacity to accommodate evolving vehicle models
