Manually Operated Scissor Lift for Precise Placement of Jet Fuel Pod

Tork Lift with manual feature options for the aerospace industry to allow for precise positioning and control.

Our aerospace customer needed a solution to accurately lift, raise, tilt and locate a jet fuel pod up to the wing and precisely attached it. In addition to using VDC power to operate the lift, the lift also needed to include manual operation back up.

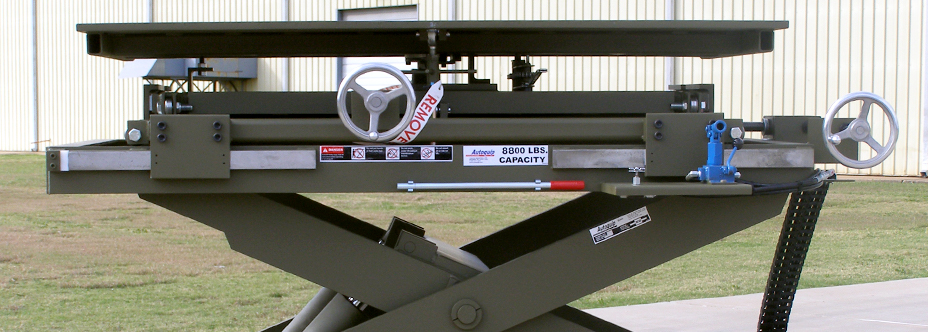

A custom Tork Lift was designed and built to include multiple features and each feature performs a specific function to achieve precise placement of the jet fuel pod. The lift was first equipped with four outriggers to stabilize the lift, lock in place, and safely lift the fuel pod up to the wing. Once the fuel pod is raised up to the wing, the manual spoke hand wheel is used for lifting the platform closer to the wing, and the turnbuckle manually tilts the pod to the angle of the wing. The lift is also equipped with a manual hand pump to allow for manual operation in case of a power disconnect. Another feature added is the tow bar connected to the transport base in order to make the lift portable for relocating to other aircraft’s.

Model # T1-60-088

Capacity: 8,800 lbs.

Travel: 60″

We knew the importance to our customer to be able to control the lift with precise positioning. We worked with our team of engineers to develop and equip the lift with specialized features that each serves a specific purpose for controlling the lift and achieving the accurate positioning required of the task.
